Mountlaser Surveying Pole and Rod - High Precision Prism Pole for Land Surveying

Prism Solution

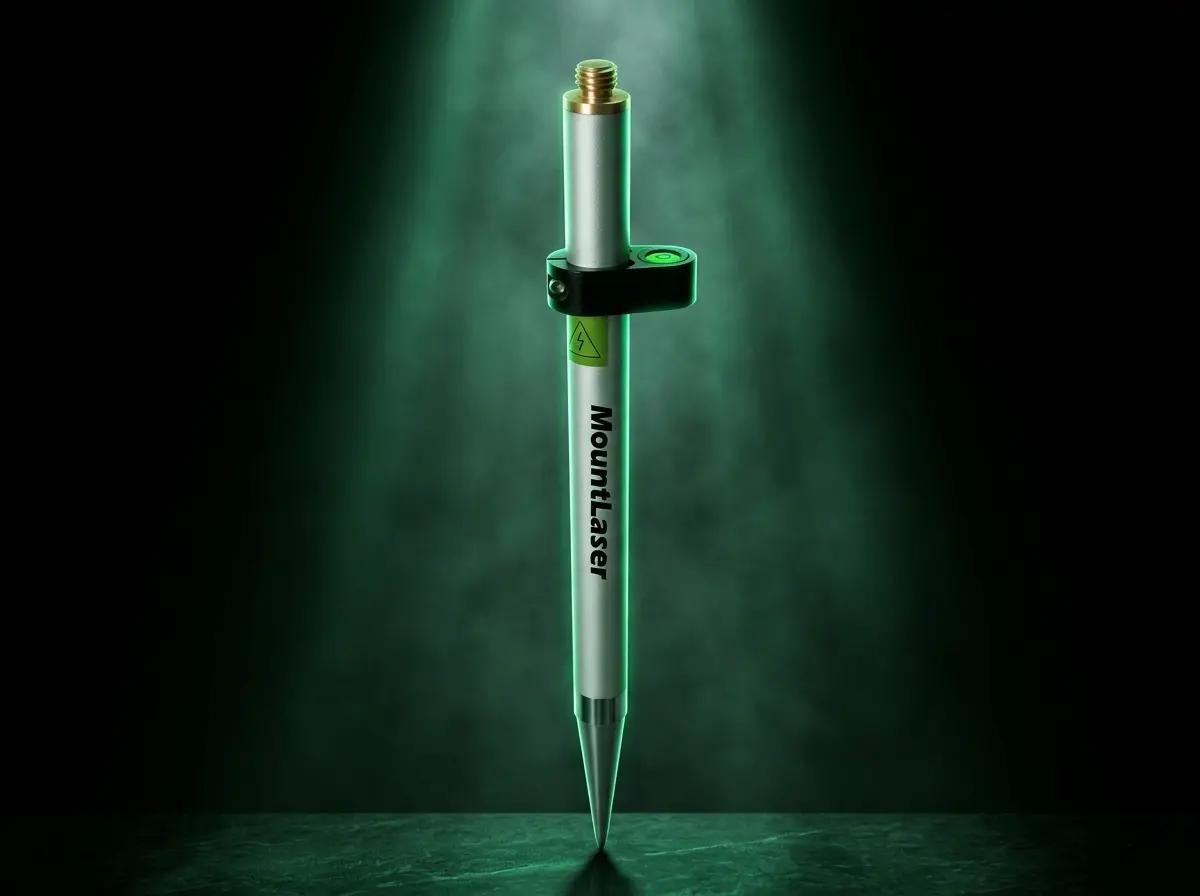

Aluminum Mini Prism Pole

11 Models

Professional

Aluminum Prism Pole

7 Models

Special

Fiberglass & Special Prism Pole

9 Models

Adapter

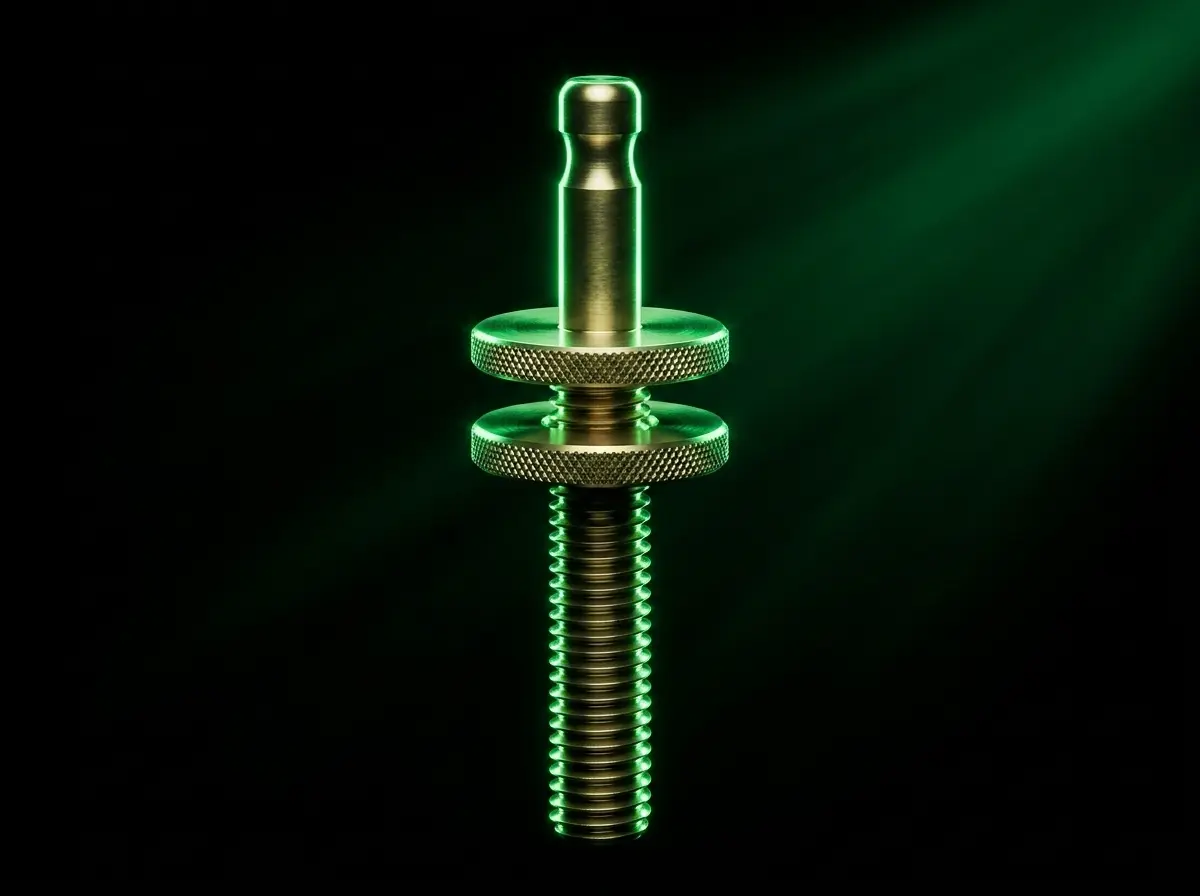

Interchangeable Pole Adapter

11 Models

Ultralight

Carbon Fiber Mini Pole

3 Models

Premium

Carbon Fiber Prism Pole

3 Models

GPS

Threaded Lock GPS Pole

8 Models

GPS

Compression & Snap Lock GPS Pole

11 Models

GPS

Twist Lock GPS Pole

8 Models

Rover

GNSS Rover Rod

7 Models

Tripod

GNSS Tripod

2 Models

Manual

Range & Pin Pole

14 Models

Maintenance

Pole Accessory & Level Vial

16 Models

ApplicationPrism pole and GPS pole

BBP

Bubble Holder

ApplicationPole diameter 25/30/32/36mm

ColorBlack

SBP

Bubble Holder

ApplicationPole diameter 32/38mm

ColorSilver

BCBP

Bubble Holder with bubble and compass

ApplicationGPS pole GP150/180CL,diameter 32mm

BBGP

Bubble Holder

ApplicationGPS pole diameter 32/38mm

GHT63

Pole clamp

ApplicationField controller hoder

ApplicationPrism Pole and GPS Pole

HRT01

Hexagonal Rod and Tip

ApplicationPrism Pole and GPS Pole

Overview

Lightweight Yet Durable Construction

Manufactured from high-quality aluminum alloy or fiberglass materials, the pole delivers excellent durability while remaining lightweight for easy transportation and daily operation.

Accurate Height Measurement Markings

High-visibility measurement scales ensure quick and accurate height readings, helping surveyors maintain consistency and efficiency in the field.

Adjustable and Extendable Design

The telescopic structure allows fast height adjustment, making the rod suitable for GNSS surveys, total station measurements, construction layout, and mapping tasks.

Secure Locking Mechanism

Equipped with robust locking clamps or twist-lock systems, the pole maintains its set height securely, reducing movement during measurement.

Compatible with Multiple Survey Instruments

Designed to support prisms, GNSS receivers, antennas, and other surveying accessories, providing a reliable platform for a wide range of field applications.

Have a question?

FAQ

If you have an issue or question that requires immediate assistance, you can click the button below.

ASK A QUESTION

What are the key differences between aluminum, fiberglass, and carbon fiber surveying poles?

Material choice significantly impacts weight, durability, conductivity, and cost. Aluminum offers excellent strength and value for general use. Fiberglass provides non-conductive properties ideal for electrical environments. Carbon fiber delivers the best strength-to-weight ratio for extended field use. Aluminum: Medium weight, high impact resistance, suitable for general surveying, prism poles, budget GNSS. Fiberglass: Medium-light weight, good durability and non-conductive, ideal for utility surveying near power lines. Carbon Fiber: Lightest weight, high stiffness but careful with impacts, best for long GNSS rover rods and extended prism work.

How do I keep my prism pole or GNSS rod perfectly plumb during extended use?

Maintaining plumb is critical for accuracy. Most surveyors rely on the built-in bubble vial, but technique and accessories matter. 1. Calibrate the bubble regularly by rotating the pole 90° increments against a known plumb reference. 2. Use a bipod or hold against stable objects for stability during stakeout. 3. For critical work, consider dual bubbles or heads-up level accessory. 4. Check and adjust rod height in your data collector before physically changing the pole. Many users report improved accuracy by adding a second bubble vial higher on the pole for better visibility while holding.

How can I prevent common failures like bending, adhesive issues, or wear on my poles?

Common pain points include bent poles from impacts, failing adhesives in carbon fiber models, and worn tips/threads. Surveyors often mention carbon fiber joint adhesive failures and carbon splinters. Aluminum poles can bend but are easier to straighten or replace sections on. Prevention & Care: 1. Store poles securely in cases or truck boxes to prevent transport damage. 2. Use protective tips and anti-skid covers; inspect threads regularly. 3. For carbon fiber, quick clamp locks and premium construction minimize joint stress. 4. Choose telescopic designs with meter scales for easy field adjustments.

How do I choose the right surveying pole or rod for my workflow?

Consider your primary instrument, required height, environment, and portability needs. Prism / Total Station: Mini or Standard Aluminum, 25-32mm diameter, bubble base, carrying bag. Examples: DZ Series, CLS Series. GNSS Rover: Carbon Fiber, 2-4m, lightweight, compression/snap/twist lock, fixed or adjustable tip. Examples: N Series, GP Series, 100% Carbon Fiber. Range / Pin Pole: Telescopic or Fixed Section, graduations, high visibility. Example: RP Series. High Precision / Robotics: Premium Carbon Fiber, adapters for multiple targets, quick clamps. Examples: G33000 Series, N Series Rover Rods. Interchangeable adapters, robust locking mechanisms (TL, QL, Compression, Twist), and options for anti-skid covers ensure versatility across total station, GNSS, and robotic workflows.

What accessories and maintenance practices improve pole performance and longevity?

Proper accessories and routine checks prevent costly errors and extend equipment life. 1. Bubble vials and holders for accurate plumbing. 2. Quick-release adapters and tips (fixed/adjustable) for multi-instrument use. 3. Regular calibration of bubbles and checks for straightness. 4. Protective cases, anti-skid covers, and bipods for field stability. Surveyors emphasize weekly bubble calibration and using protective storage to avoid transport damage. Poles include soft carrying bags and robust designs to address these concerns.
