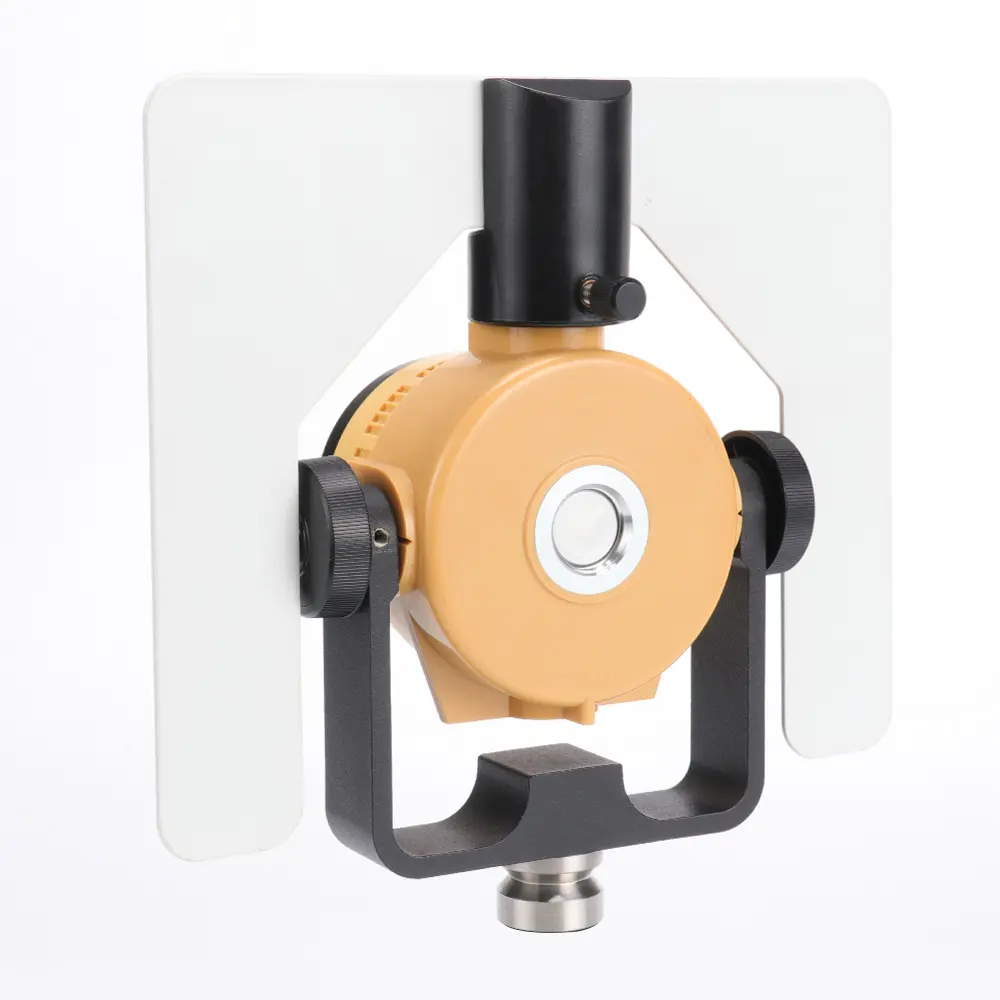

The Z14B Prism Assembly is a precision-engineered Reflector Prism Assembly developed for professional surveyors who demand consistent accuracy, long service life, and dependable performance in real-world field conditions. Designed with practicality and durability in mind, this model combines high-quality optical components with a robust mechanical structure, making it an essential accessory for modern surveying tasks such as construction layout, control surveys, infrastructure measurement, and general fieldwork.

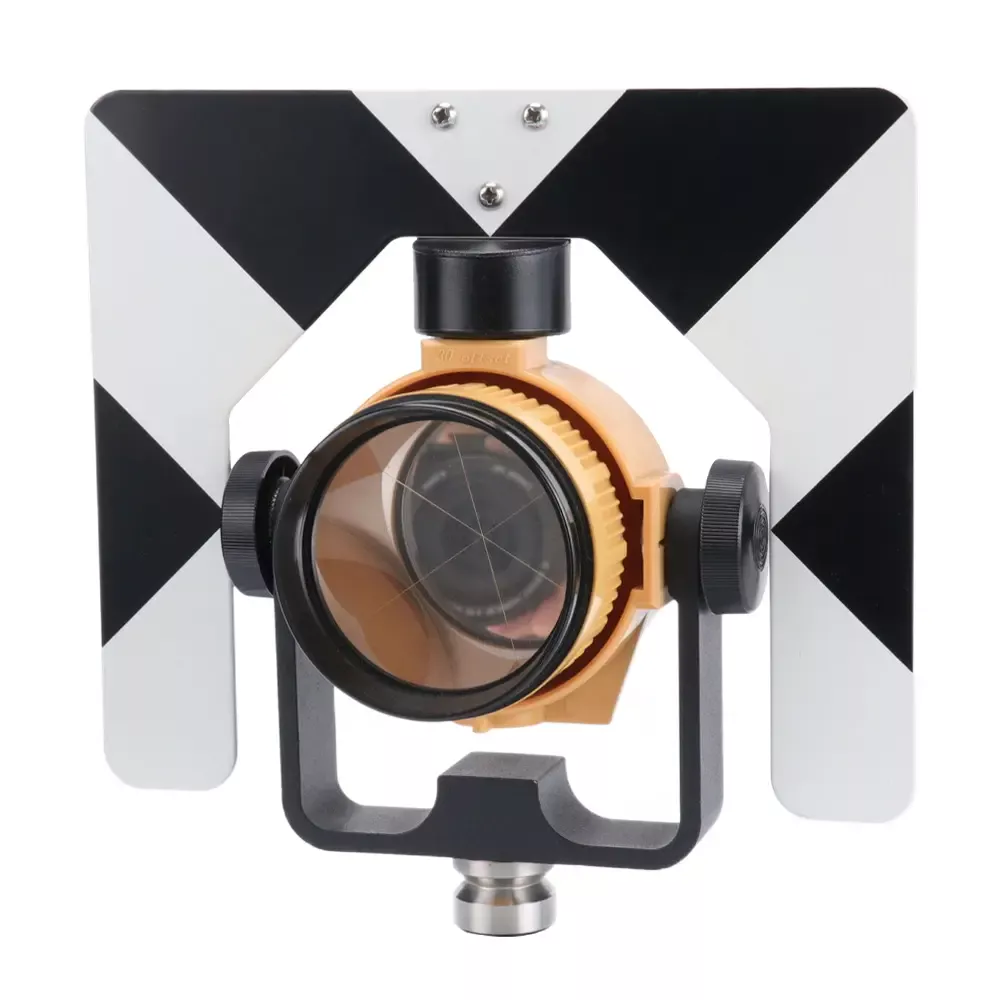

At the core of the Z14B Prism Assembly is a superior 64 mm prism that delivers reliable signal return and stable measurement results. To support efficient field operations, this Reflector Prism Assembly is offered in two clearly color-coded versions: the Z14B-YY Prism Assembly (Yellow–Yellow) and the Z14B-YW Prism Assembly (Yellow–White). These visual identifiers make equipment management easier on busy job sites, especially when multiple teams or projects are running simultaneously.
One of the most practical advantages of the Z14B Prism Assembly is its serviceable design. The prism can be easily replaced with a compatible C14B-YY Prism, allowing users to extend the lifespan of the assembly without replacing the entire unit. This thoughtful engineering approach reduces long-term costs and minimizes downtime, making the Reflector Prism Assembly a smart investment for surveying companies that value efficiency and sustainability.
The mechanical structure of the Z14B Prism Assembly is built around a robust Japanese-style stand. Known for strength, stability, and precise positioning, this stand ensures that the prism remains firmly aligned during measurement. Even in challenging environments—such as uneven terrain, construction zones, or high-traffic sites—the Reflector Prism Assembly maintains reliable performance, protecting the integrity of your survey data from setup to completion.
Key Features of the Z14B Prism Assembly
Flexible Offset and Tilting Axis Design
The Z14B Prism Assembly offers a choice of 0 mm or -30 mm offset, allowing surveyors to adapt quickly to different instrument setups and measurement requirements. This flexibility makes the Reflector Prism Assembly suitable for a wide range of applications, from standard control work to more complex layouts. In addition, the consistent 100 mm tilting axis height ensures accurate angle referencing and stable positioning during measurements.
Optimized Prism Coating Options
To meet diverse environmental and wavelength requirements, the Z14B Prism Assembly is available with either a copper-coated prism or a silver-coated prism. The copper coating provides excellent all-around performance for most surveying conditions, while the silver coating can enhance reflectivity in specific environments. These options allow the Reflector Prism Assembly to be tailored to your exact project needs, improving signal reliability and measurement consistency.
Built for Professional Surveying Applications
The Z14B Prism Assembly is designed to integrate seamlessly with modern total stations and prism poles. Its precise geometry, stable stand, and high-quality optics ensure dependable performance in both short-range and long-distance measurements. Whether used for routine field surveys or demanding engineering projects, this Reflector Prism Assembly delivers the accuracy professionals rely on every day.
Durability is another defining characteristic. The Japanese-style stand and carefully selected materials help the Z14B Prism Assembly withstand repeated handling, transport, and exposure to outdoor conditions. This makes it particularly suitable for surveyors who work across multiple sites and require equipment that performs consistently over time.
Why Choose MountLaser’s Z14B Prism Assembly
At MountLaser, we focus on delivering surveying accessories that balance precision, durability, and cost efficiency. The Z14B Prism Assembly reflects our commitment to practical engineering and long-term value. From the serviceable prism design to the flexible offset options, every detail is developed with real surveyors in mind.
Our manufacturing standards ensure that each Reflector Prism Assembly meets strict quality requirements before reaching the field. Combined with our industry experience and responsive support, choosing MountLaser means choosing equipment you can trust for accurate results and dependable performance.
Summary
The Z14B Prism Assembly is a professional-grade Reflector Prism Assembly built for surveyors who require accuracy, adaptability, and durability. With a high-quality 64 mm prism, color-coded models, replaceable prism design, Japanese-style stand, flexible offset options, and multiple coating choices, it delivers reliable measurement performance while reducing long-term ownership costs. It is a practical and dependable solution for modern surveying challenges.
Interested in the Z14B Prism Assembly? Contact Us Today
If you would like more information about the Z14B Prism Assembly or need help selecting the right Reflector Prism Assembly for your projects, we warmly invite you to contact MountLaser. Our team is ready to support you with professional advice and tailored solutions.
