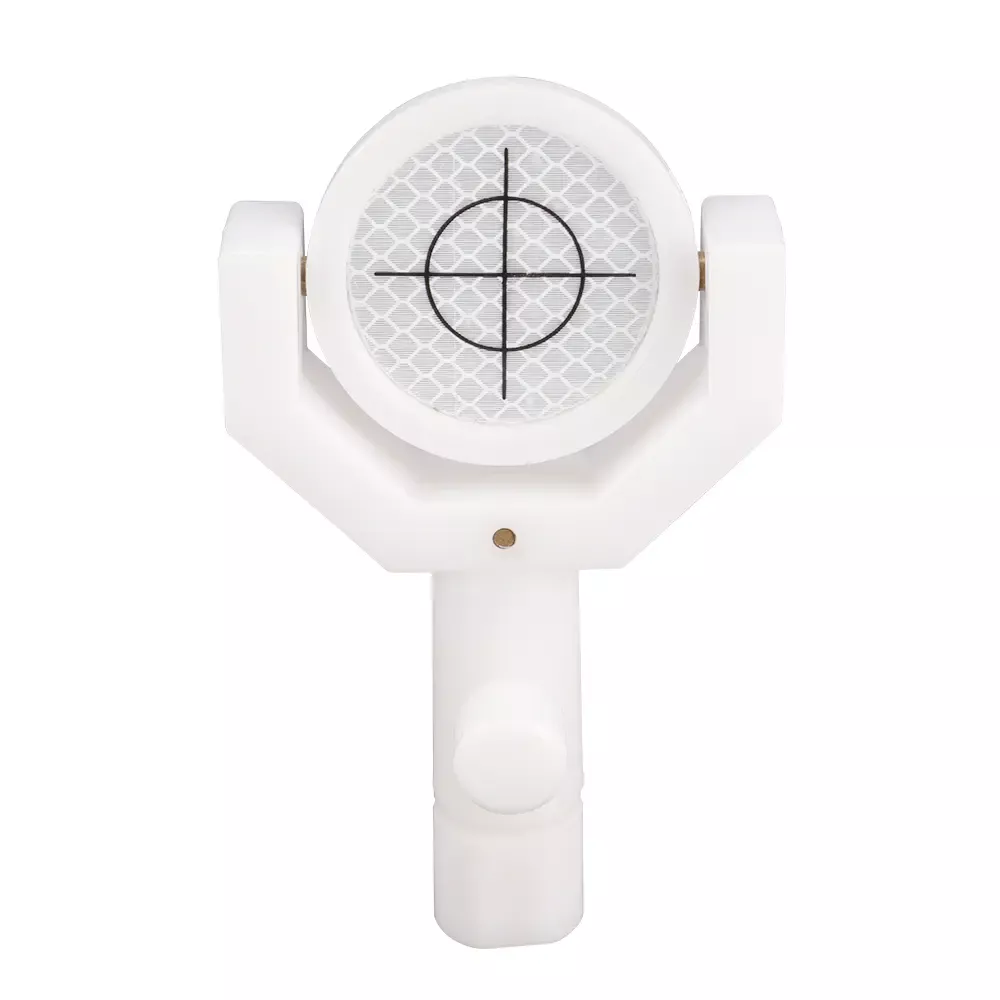

In the demanding world of structural engineering and geomatics, precision is the boundary between success and catastrophe. A Reflective Target is a specialized optical sensor—typically a micro-prism or a high-intensity retro-reflective sheet mounted on a durable base—designed to bounce EDM (Electronic Distance Measurement) signals back to a Total Station with surgical accuracy. Despite its compact footprint, the Reflective Target has become an indispensable asset in modern surveying, providing the critical data points needed to track the structural integrity of our most ambitious infrastructure projects.
The Critical Role of Precision in Subterranean Engineering
Infrastructure projects like subway tunnels and deep foundation pits are subject to immense geological pressure. Even a few millimeters of unintended movement can signal a potential collapse or structural failure. This is where the Reflective Target proves that size is not proportional to impact. In the past, monitoring these shifts required bulky equipment or manual measurements that were both time-consuming and prone to human error.
Revolutionizing Tunnel Deformation Monitoring
Tunnels are notoriously difficult environments for surveying. Low light, high humidity, and cramped spaces make traditional monitoring a nightmare. The integration of the Reflective Target has fundamentally changed this workflow:
Continuous Convergence Monitoring: By permanently mounting a Reflective Target along the tunnel lining, engineers can perform automated convergence checks. The targets remain fixed, allowing for highly repeatable measurements over months or years.
Overcoming Low Visibility: Modern Reflective Target surfaces are engineered with advanced retro-reflective coatings. These coatings ensure that even in the dusty, dim conditions of a TBM (Tunnel Boring Machine) operation, the Total Station can lock onto the signal instantly.
Space Efficiency: In narrow transit tunnels, there is no room for large tripods. A small, adhesive or bolt-on Reflective Target provides a low-profile solution that doesn’t interfere with construction traffic or moving machinery.
Enhancing Foundation Pit Safety
For deep foundation pits in urban centers, monitoring “heave” and lateral displacement is vital to protect neighboring buildings. The Reflective Target acts as a silent sentry on the diaphragm walls. Because they are inexpensive and easy to install in large quantities, surveyors can create a high-density “monitoring mesh.” This mesh provides a granular view of soil movement that a few isolated prisms simply cannot match.
Why the Reflective Target is a Game-Changer: Key Advantages？
The “revolution” in monitoring isn’t just about the hardware; it’s about the efficiency and data quality that a high-quality Reflective Target facilitates.
Automated Data Acquisition
When paired with an Automated Total Station (AMTS), a Reflective Target allows for 24/7 monitoring without a human operator on-site. The system can be programmed to “scan” dozens of targets at set intervals, sending real-time deformation alerts to an engineer’s smartphone.
Cost-Effectiveness and Scalability
Large-scale projects often require hundreds of monitoring points. Compared to traditional glass prisms, the Reflective Target—especially the sheet-based variety—is significantly more affordable. This allows project managers to increase the number of monitoring points, thereby increasing the safety factor of the project without blowing the budget.
Durability in Harsh Environments
Top-tier Reflective Target products are designed to withstand UV exposure, chemical runoff in tunnels, and extreme temperature fluctuations. This longevity ensures that the baseline data remains consistent from the day the first stone is turned until the project’s completion.
Essential Considerations When Purchasing a Reflective Target
Not all targets are created equal.
Reflective Signal Quality: Ensure the target uses high-grade retro-reflective material (like 3M or equivalent). A poor-quality Reflective Target will scatter the laser, leading to “noisy” data and distance errors.
Adhesive or Mounting Strength: For long-term monitoring, the mounting bracket or adhesive backing must be industrial-grade. If the target shifts even 1mm due to poor glue, your deformation data becomes worthless.
Angle Versatility: Look for targets that offer a wide effective angle. In tunnels, you are often measuring from sharp angles; a target that only works “head-on” will limit your station setup options.
Weather Resistance: Ensure the product is rated for high humidity and dust (IP ratings are a plus for housed targets).
Conclusion
The evolution of surveying proves that the smallest tools often carry the heaviest responsibilities. From preventing tunnel collapses to ensuring the stability of massive urban excavations, the Reflective Target has revolutionized how we interact with the built environment. Its ability to provide high-precision, automated, and cost-effective data makes it the gold standard for modern deformation monitoring.
