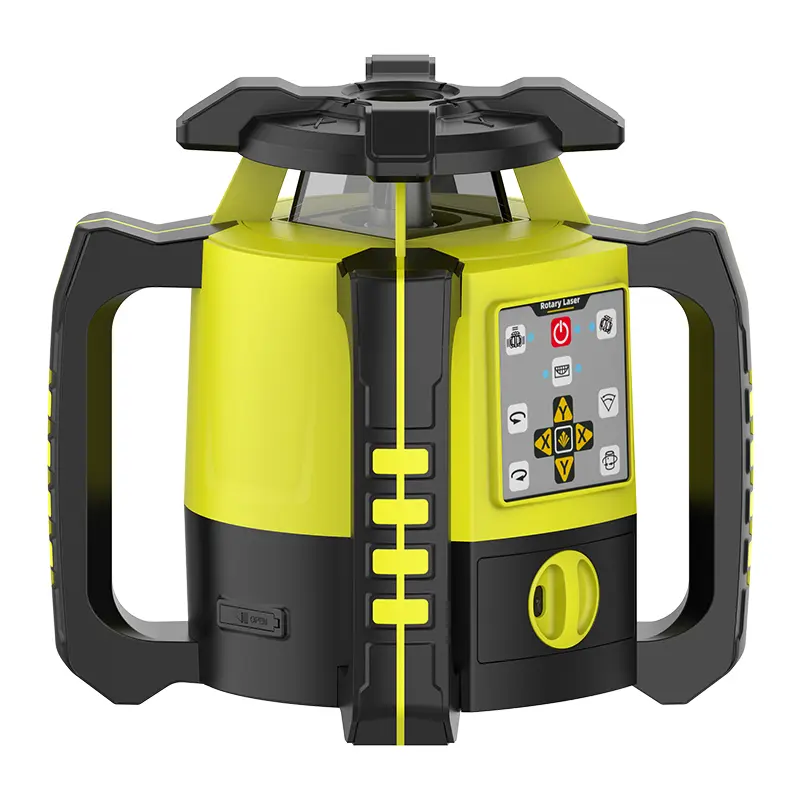

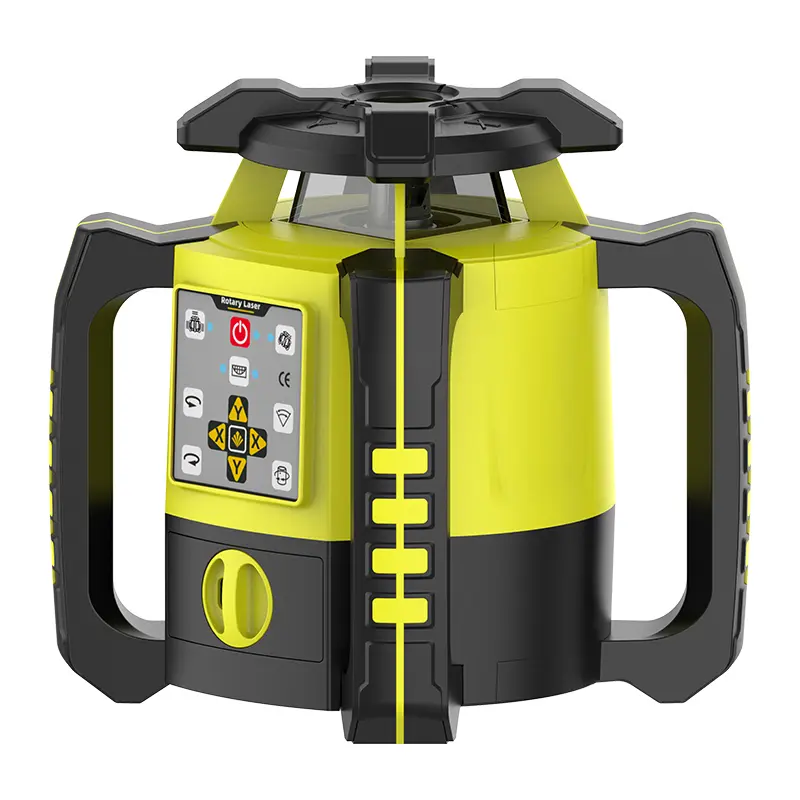

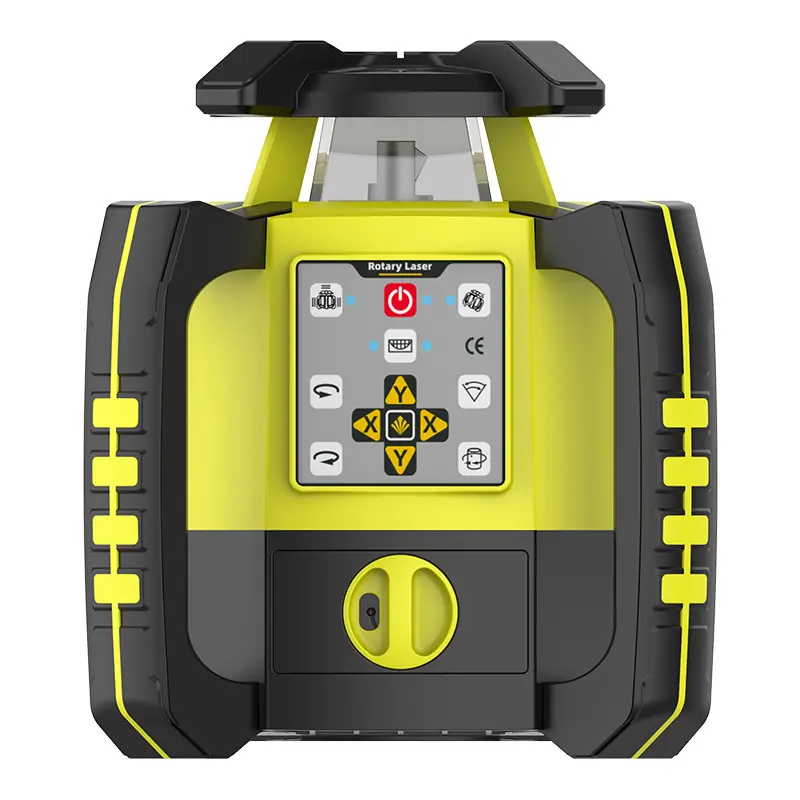

The Mount Laser KRL-640 represents the pinnacle of innovation and precision in site layout technology. Engineered for the most demanding grading and construction projects, this tool is a comprehensive Dual Slope Rotary Laser Kit that provides unparalleled control and accuracy. Rotary Laser KRL-640 functions as a sophisticated Electronic Horizontal & Vertical Rotary Laser, utilizing a state-of-the-art leveling system with dual gyroscopes and three individual electronic sensors to achieve a best-in-class leveling accuracy of ±0.25mm/10m.
This all-in-one Dual Slope Rotary Laser Kit is designed for ultimate convenience and performance in the field. It projects a perfect 360-degree plane in both horizontal and vertical orientations, giving you a complete spatial reference system. The included RC200 remote control allows you to manage all functions, including precise two-way slope adjustments, from an impressive distance of up to 300 meters. As a robust Electronic Horizontal & Vertical Rotary Laser with an IP66 protection rating, the KRL-640 is built to withstand the toughest outdoor conditions, ensuring reliable operation in dust, rain, and extreme temperatures from -20°C to +60°C.
Rotary Laser KRL-640 Specifications
| Laser type | KRL-640R | KRL-640G |
| Laser type/wavelength | Red laser (635nm-30mw)Upper/Lower Dot | Green laser (515nm-30mw)Upper/Lower Dot |
| Leveling way | Electronic leveling (2 gyroscope + 3individual electronic sensor) | |
| Leveling range | ±5° | |
| Leveling accuracy | ±0.25mm/10m | |
| Working dia (UsingLP500) | ≥1000m | |
| Working dia (UsingLP700) | ≥800m | |
| Working temperature | -20℃～+60℃ | |
| Laser rotation speed | 0/300/600/1000/1500rpm (Permanent magnet brushless hollow motor) | |
| Area scan | 15°/45°/90°/180° | |
| Tilt setting | Two-way | |
| Slope operation | Use the RC200 remote control | |
| Main unit operation | 12 keys /5 lights (Sync with remote control signal) | |
| Remote control operation | 12 keys /5 lights（Synchronize with host signals Remote control distance ≥300m) | |
| Power supply method | Lithium (Single section replaceable) AC direct supply | |
| Lithium working time | 15-20H (Longer working time battery for option) | |
| Calibration method | Remote control /APP | |
| Packaging | Plastic box | |
| Size | Length 217 Width 217 Height 244(mm) | |
| Protection grade | IP66 | |
| Fall height | 1M Main Machine only | |
| Setting slop range | ±10% | |
