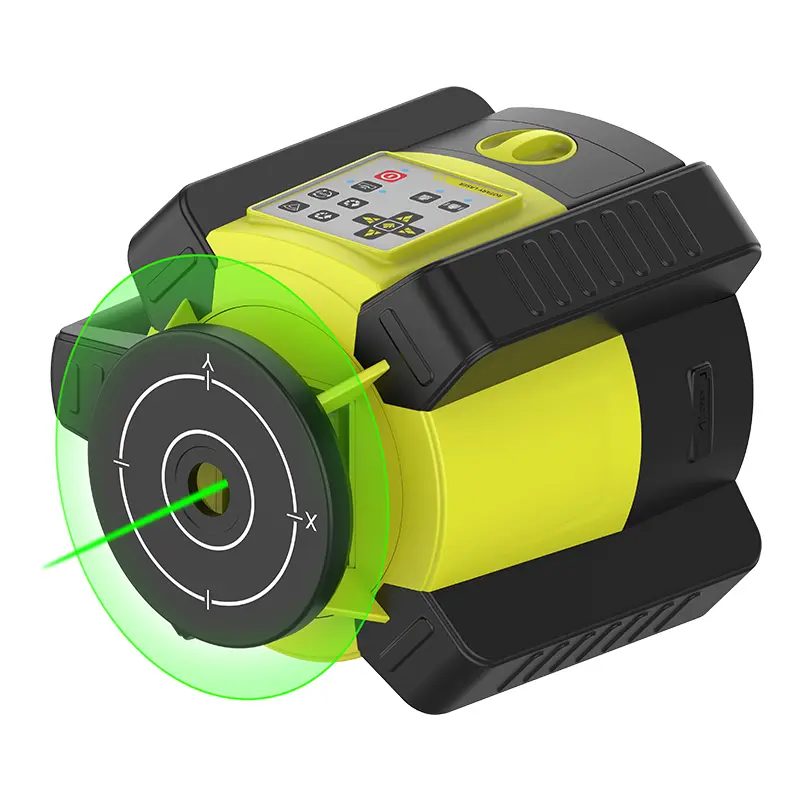

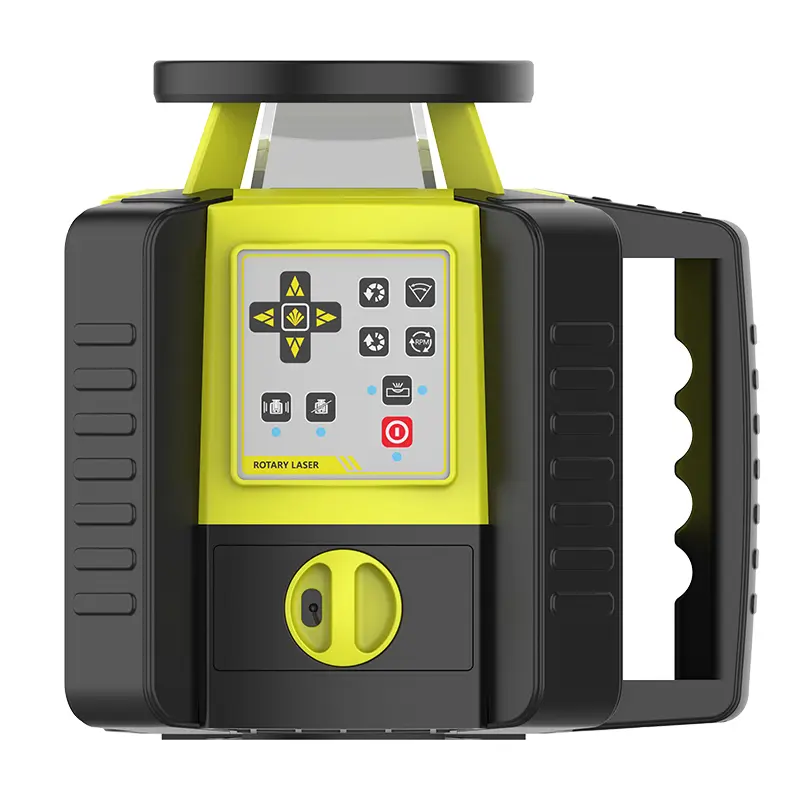

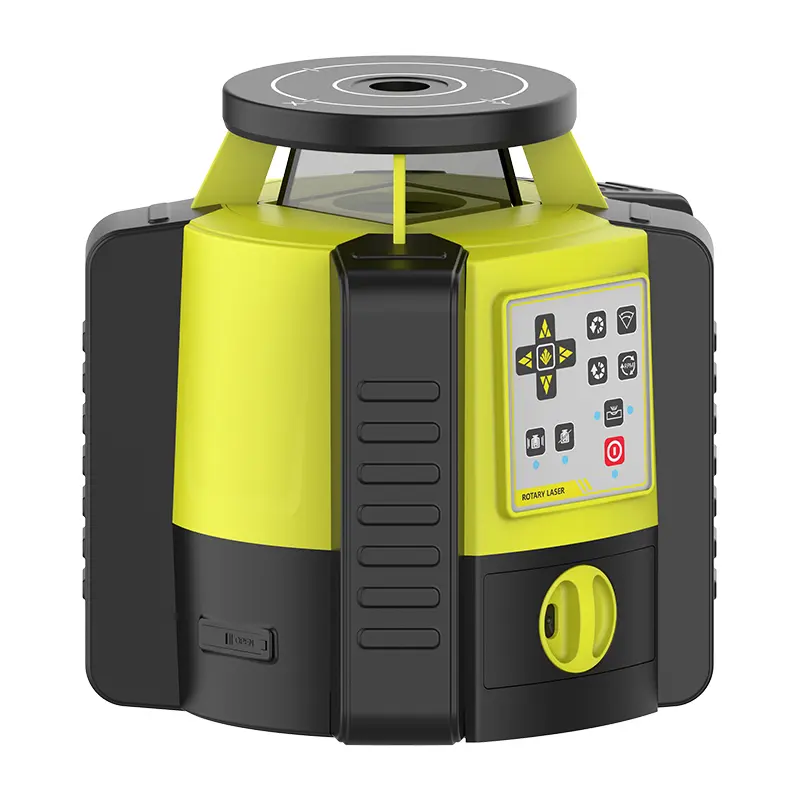

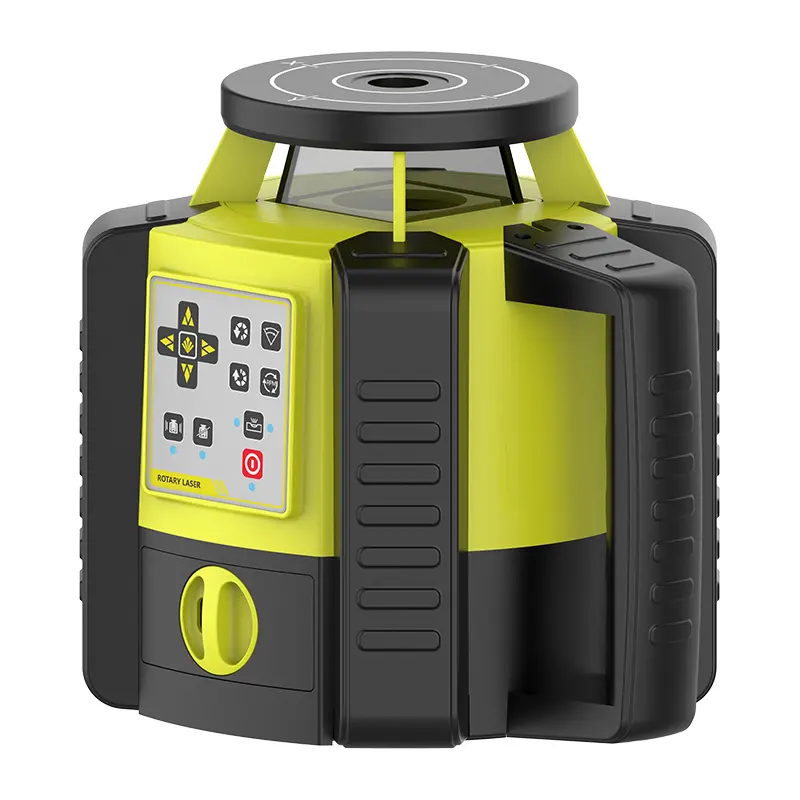

Rotary Laser KRL-410 is a professional-grade dual-plane rotary laser level engineered to tackle the most demanding site preparation and earthwork tasks. This robust tool projects a precise 360-degree laser plane in both horizontal and vertical orientations, making it the ultimate rotary laser level for grading, foundation work, and general construction layout. Its advanced electronic leveling system, which integrates a gyroscope and a dual-axis sensor, ensures exceptional accuracy of ±0.5mm/10m, automatically compensating on uneven ground within a ±5° range.
Available in both high-power Red (KRL-410R) and ultra-bright Green (KRL-410G) laser models, this rotary laser level delivers outstanding visibility over long distances, with a working range of up to 1000 meters when used with a detector. The integrated RC100 remote control allows operators to manage all functions—including critical two-way slope setting up to ±10%—from a distance of over 150 meters, streamlining the workflow for any grading crew.Rotary Laser KRL-410 With an IP65 protection rating for superior dust and water resistance, the KRL-410 is built to be the most reliable rotary laser level for grading on any job site, in any condition.
Rotary Laser KRL-410 Specifications
| Laser type | KRL-410R | KRL-410G |
| Laser type/wavelength | Red laser (635nm-30mw)Upper Dot | Green laser (515nm-30mw)Upper Dot |
| Leveling way | Electronic leveling (1 gyroscope + 1dual axis electronic sensor) | |
| Leveling range | ±5° | |
| Leveling accuracy | ±0.5mm/10m | |
| Working dia (UsingLP500) | ≥1000m | |
| Working dia (UsingLP700) | ≥800m | |
| Working temperature | -20℃～+50℃ | |
| Laser rotation speed | 0/300/600/1000/1500rpm (Permanent magnet brushless hollow motor) | |
| Area scan | 15°/45°/90°/180° | |
| Tilt setting | Two-way | |
| Slope operation | Use the RC100 remote control | |
| Main unit operation | 12 keys /5 lights (Sync with remote control signal) | |
| Remote control operation | 12 keys /5 lights（Synchronize with host signals Remote control distance ≥150m) | |
| Power supply method | Lithium (Single section replaceable) AC direct supply | |
| Lithium working time | 15-20H (Longer working time battery for option) | |
| Calibration method | Remote control /APP | |
| Packaging | Plastic box | |
| Size | Length 232 Width 189 Height 227(mm) | |
| Protection grade | IP65 | |
| Fall height | 1M Main Machine only | |
| Setting slop range | ±10% | |
