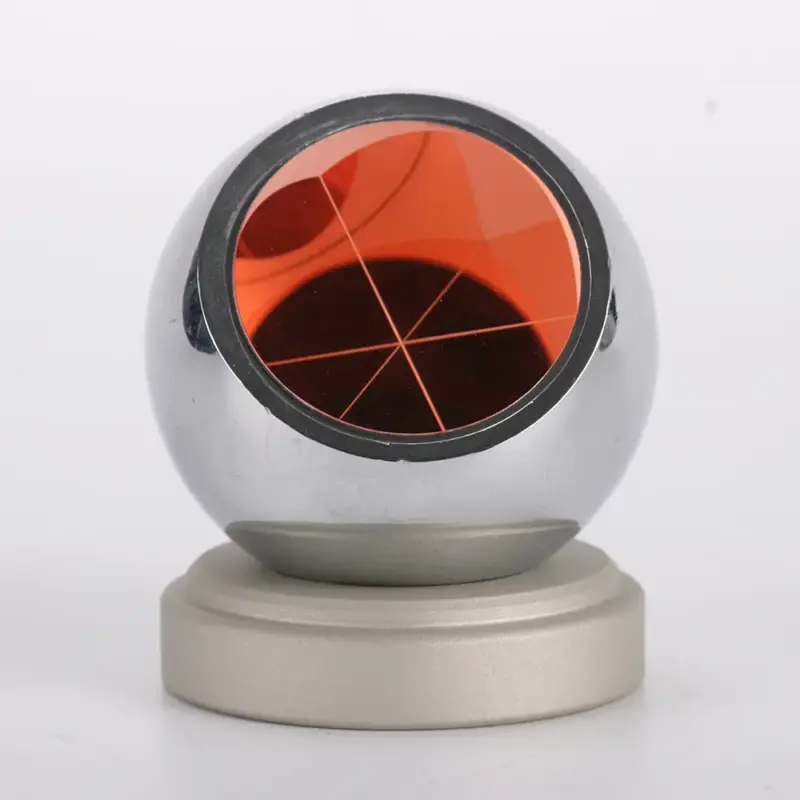

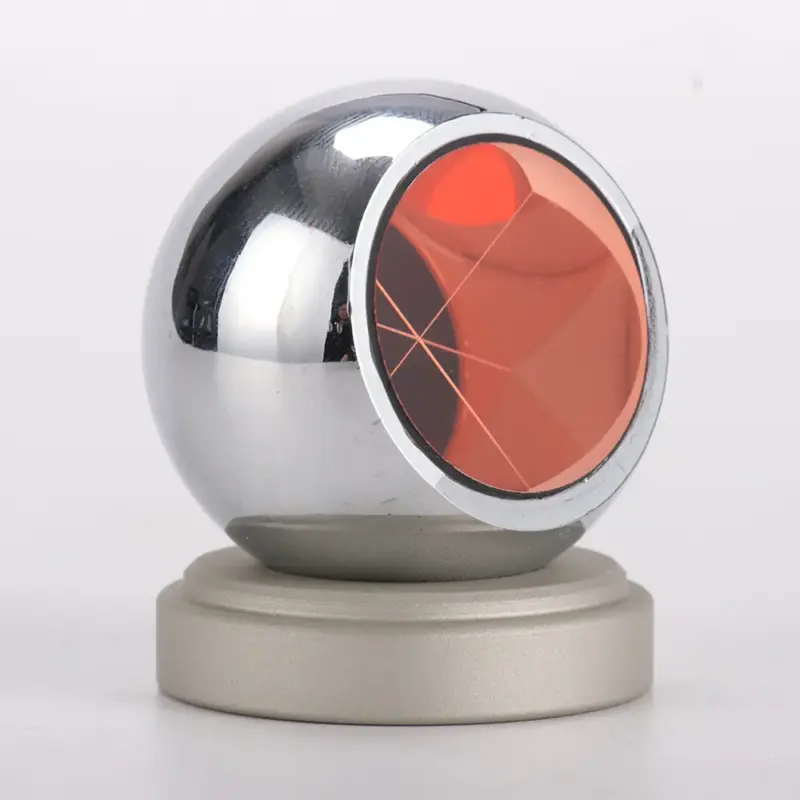

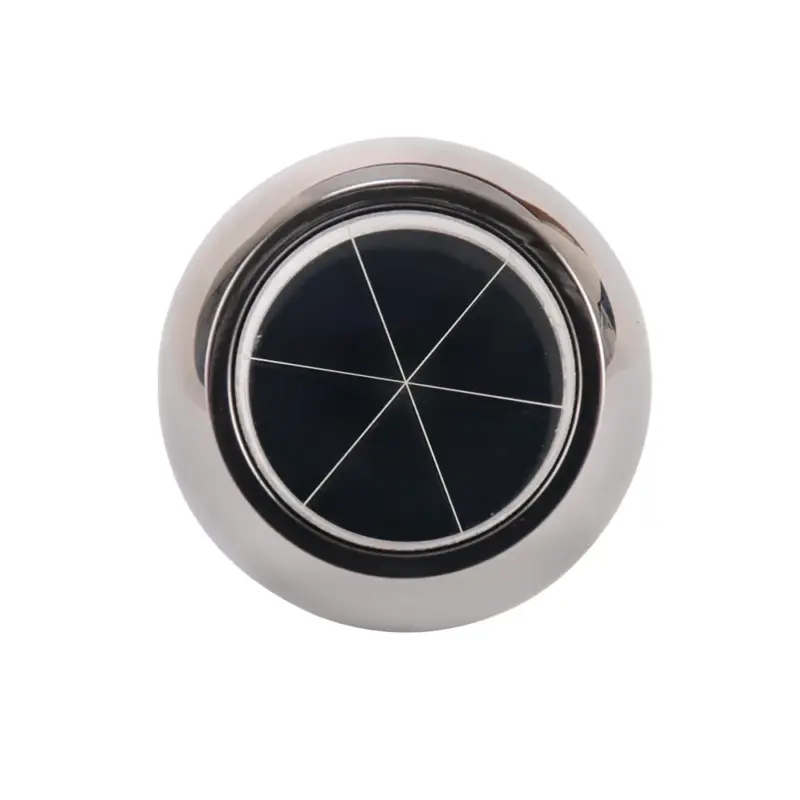

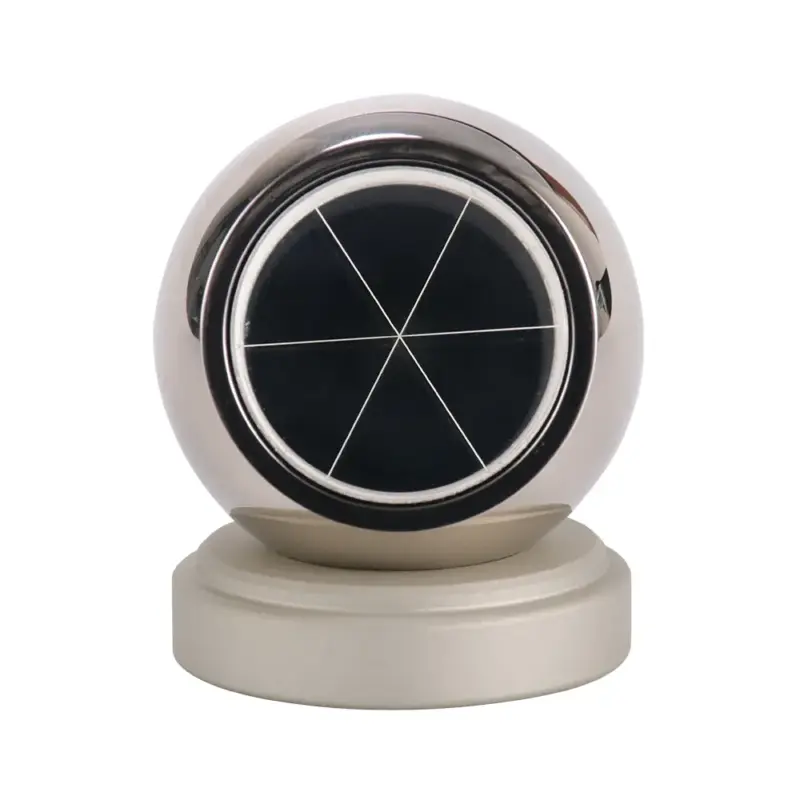

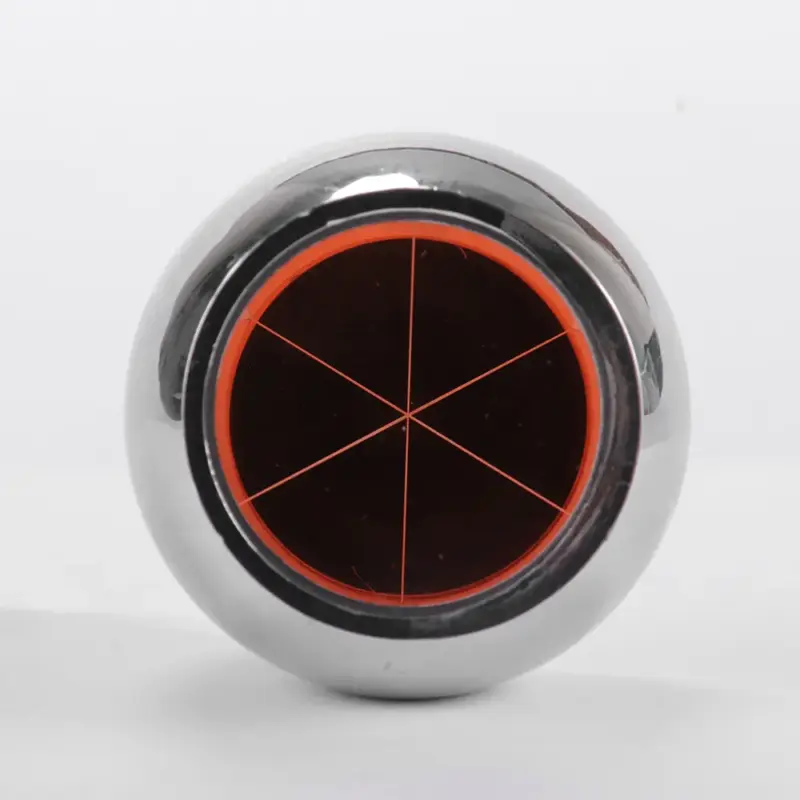

BP001 Ball Prism With Magnetic Base

BP001 Ball Prism with Magnetic Base Product Introduction

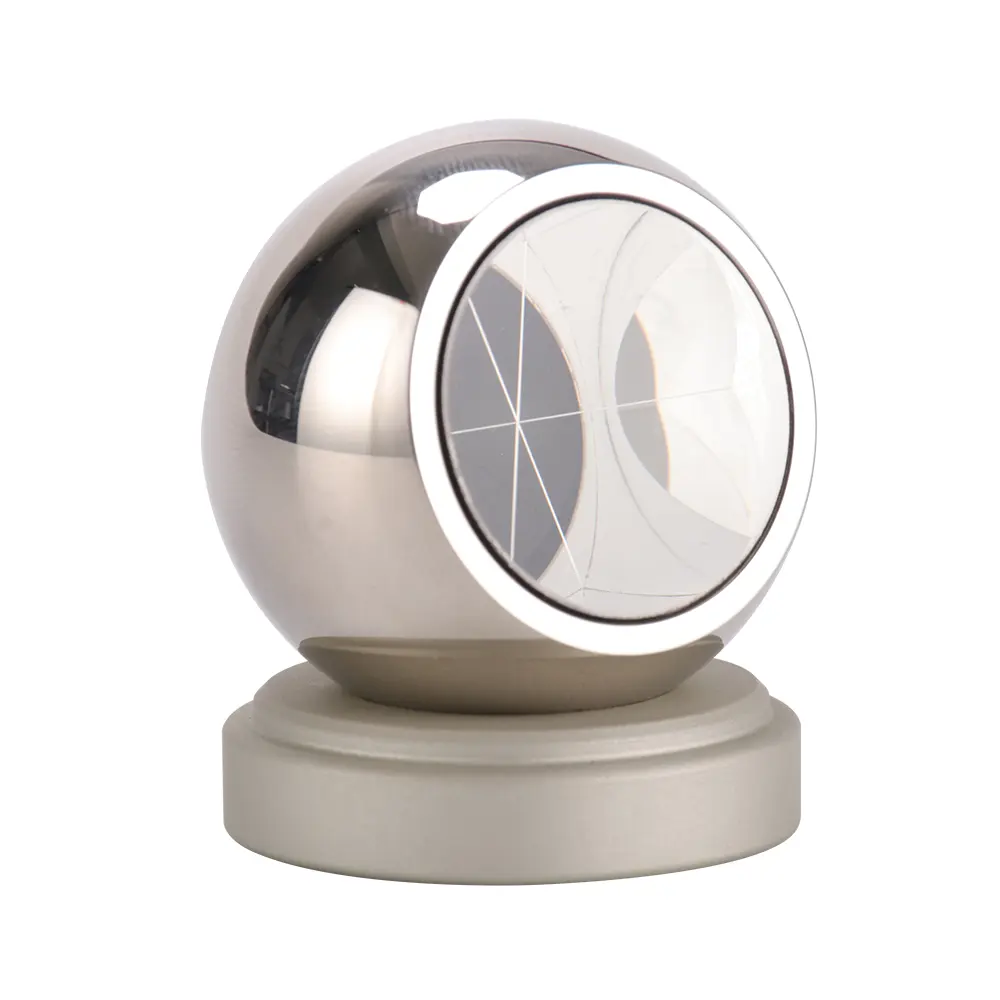

The BP001 Ball Prism with Magnetic Base is a precision-engineered spherical monitoring prism designed for accurate deformation tracking, alignment, and structural monitoring in demanding environments such as tunnels, construction sites, and geodetic networks. This high-precision BP001 ball prism with magnetic base combines flexibility, stability, and repeatability—making it an ideal choice for professional surveyors and monitoring engineers.

Built with a corrosion-resistant stainless-steel sphere and equipped with a powerful magnetic pedestal, the spherical monitoring prism ensures quick and secure mounting on metal surfaces without requiring additional tools. Its magnetic base allows easy repositioning for repeated measurements while maintaining consistent accuracy.

The BP001 ball prism with magnetic base is available in several configurations:

BP001A: Prism Ø17.8 mm, Ball Ø30 mm

BP001B: Prism Ø25.4 mm, Ball Ø38.1 mm

BP002A: Prism Ø17.8 mm, Ball Ø30 mm with black prism ring

BP002B: Prism Ø25.4 mm, Ball Ø38.1 mm with black prism ring

BP002C: Prism Ø25.4 mm, Ball Ø45 mm with black prism ring

For specialized measurement needs, this spherical monitoring prism can be supplied with copper-coated or silver-coated prism surfaces for enhanced signal return under varying field conditions.
