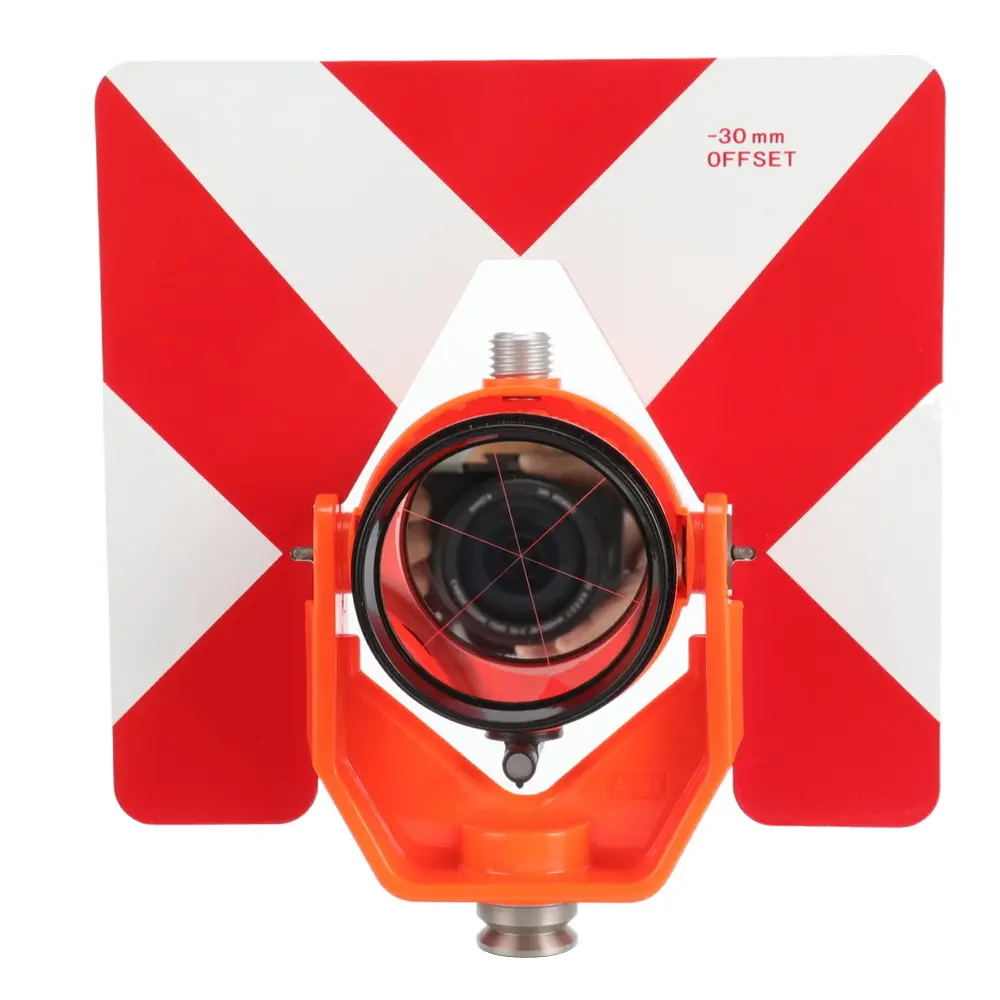

The Z14BS Prism Assembly is a professional-grade Reflector Prism Assembly engineered for surveyors who require dependable accuracy, mechanical stability, and long-term durability in demanding field environments. Developed by Mountlaser, this model builds on proven prism assembly design principles while adding flexibility and serviceability that modern surveying teams value. Whether used in construction layout, control surveys, infrastructure projects, or daily field measurement tasks, the Z14BS Prism Assembly delivers consistent, trustworthy results.
At the heart of the Z14BS Prism Assembly is a high-quality 64mm prism designed to provide strong signal return and stable measurements across varying distances. This Reflector Prism Assembly is manufactured with precision tolerances to ensure optical consistency, helping surveyors maintain confidence in their data. To support efficient field management, the Z14BS series includes clearly identifiable color-coded versions, such as the Z14BS-RR Prism Assembly, making it easier to organize equipment among teams and projects.
A major advantage of the Z14BS Prism Assembly is its serviceable design. The prism can be replaced with a compatible unit when required, extending the overall lifespan of the assembly and reducing total ownership costs. This practical feature is especially valuable for surveying companies that operate in high-usage environments and want to maximize return on investment without compromising measurement quality.
The mechanical structure of the Z14BS Prism Assembly is based on a robust Japanese-style stand, known for its strength, balance, and reliability. This stand ensures the Reflector Prism Assembly remains stable during setup and operation, even on uneven terrain or busy construction sites. From initial alignment to final measurement, the Z14BS Prism Assembly helps protect data integrity and workflow efficiency.
Key Features of the Z14BS Prism Assembly
Flexible Offset and Tilting Axis Configuration
The Z14BS Prism Assembly offers 0mm or -30mm offset options, allowing surveyors to adapt the prism position to different instruments and measurement requirements. This flexibility simplifies setup and improves compatibility across various surveying scenarios. With a consistent 100mm tilting axis height, the Reflector Prism Assembly ensures accurate angle referencing and stable alignment throughout the measurement process.
Optimized Prism Coating Options
To meet diverse environmental and wavelength requirements, the Z14BS Prism Assembly is available with either a copper-coated prism or a silver-coated prism. The copper coating provides reliable performance in most standard surveying applications, while the silver coating can enhance reflectivity in specific conditions. These options allow the Z14BS-RR Prism Assembly and related models to be tailored precisely to your project needs, improving signal strength and measurement consistency.
Designed for Professional Surveying Applications
The Z14BS Prism Assembly is designed for seamless integration with modern total stations, prism poles, and standard surveying accessories. Its precise geometry and stable mounting ensure reliable results for both short-range and long-distance measurements. Whether working on urban construction sites or open-field surveys, this Reflector Prism Assembly maintains dependable optical performance.
Durability is a defining characteristic of the Z14BS Prism Assembly. The Japanese-style stand and carefully selected materials are built to withstand frequent transport, repeated setup, and exposure to outdoor conditions. This makes the Z14BS-RR Prism Assembly an excellent choice for surveyors who demand equipment that performs consistently over time with minimal maintenance.
Why Choose Mountlaser’s Z14BS Prism Assembly
Mountlaser is committed to providing surveying accessories that balance precision, durability, and cost efficiency. The Z14BS Prism Assembly reflects this philosophy through its serviceable prism design, flexible offset options, and reliable mechanical construction. Every Reflector Prism Assembly is manufactured under strict quality control standards to ensure consistent performance in real-world applications.
By choosing Mountlaser, you benefit from industry experience, dependable product quality, and responsive technical support. The Z14BS-RR Prism Assembly and related models are designed to help surveyors work more efficiently, reduce downtime, and achieve accurate results with confidence.
Summary
The Z14BS Prism Assembly is a versatile and professional Reflector Prism Assembly designed for surveyors who value accuracy, adaptability, and long-term reliability. With a high-quality 64mm prism, replaceable design, flexible 0mm/-30mm offset options, 100mm tilting axis height, and copper or silver coating choices, it delivers consistent measurement performance while controlling long-term costs. It is a dependable solution for modern surveying projects of all sizes.
Interested in the Z14BS Prism Assembly? Let’s Talk
If you would like more details about the Z14BS Prism Assembly or need help selecting the right Z14BS-RR Prism Assembly for your surveying applications, we warmly welcome you to contact Mountlaser. Our team is ready to support your projects with professional advice and reliable solutions.
